Maestro Debug Orca

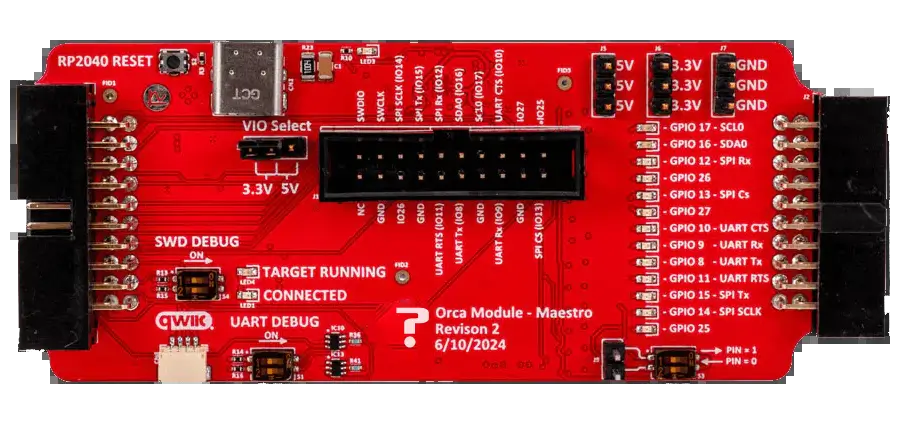

The Maestro Orca is a trouble shooting and development tool for FREE-WILi. The board consists of a USB debugger for the RP2040 main controller and IO test points.

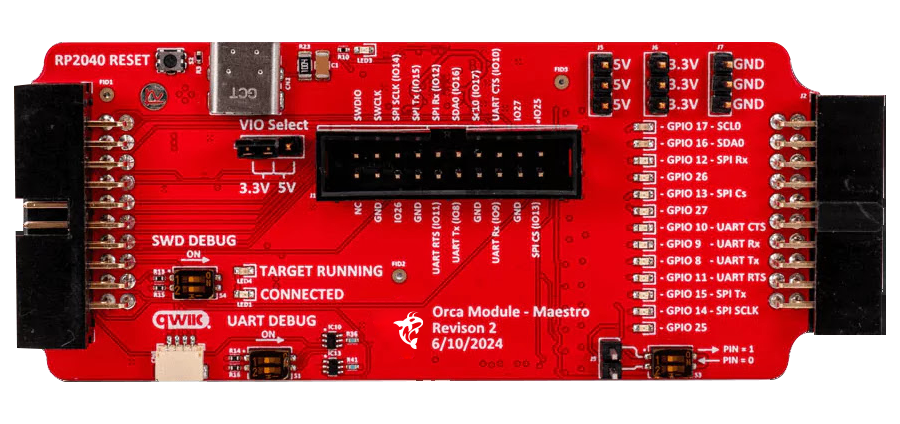

Maestro Orca Module

Features

• Integrated Raspberry Pi Debug Probe https://www.raspberrypi.com/documentation/microcontrollers/debug-probe.html
• Pico scope Logic Analyzer Connector https://www.picotech.com/oscilloscope/2000/picoscope-2000-overview
• LEDs which display IO status
• Switches to test GPIOs that are inputs
• Prototyping connectors for I2C (QWIIC) and SDCARDs.
• Jumper for selecting or injecting IO voltage
• Connector for plugging in additional Orca modules

Schematic

OrcaModule_Monstro.pdf

pdf
